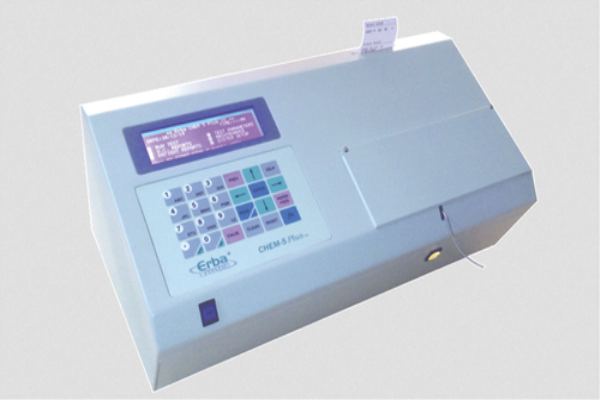

Erba Chem 5 Plus V2
Semi-automated analyzer Optical system of static photometer with 8 filters Triple cuvette system Two levels of quality control with Levy Jennings Plot 150 open test programs, selectable through keypad Optical system of static photometer with 8 filters Automatic calibration against standard High resolution LCD display with backlit view

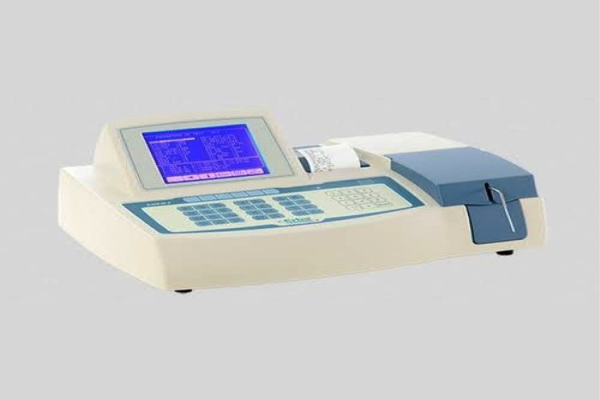

ERBA CHEM 7
Static photometer with photometric range (340-670) 8 Interference filters 340, 405, 450, 505, 546, 578, 600 and 670 n.m. Silicon photodiode detectors Photometric range from 0 to 3.0 OD Quartz Halogen lamp of 12V, 20W Unique Triple cuvette system 18 µl Flow cell 10 mm Square cuvette 6 mm Round glass tube with adaptor Peltier temperature control: 20°C-40°C in steps of 1°C Peristaltic Pump Minimum aspiration volume 200 µl

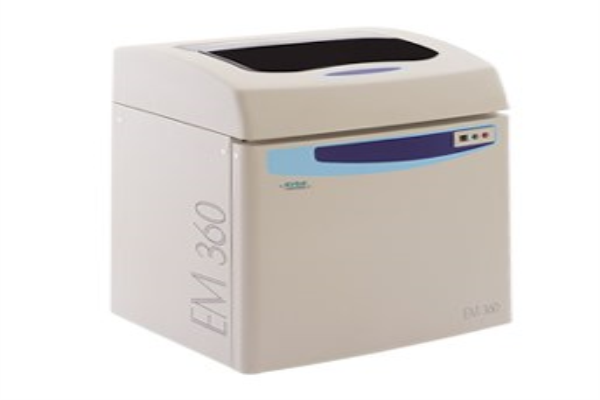

EM360
EM 360 is a Fully Automated Clinical Chemistry Analyser which is time tested and proven technology. It is designed to provide the most demanding productivity, speed and operational ease. EM 360 with a throughput of 360 tests/hour offers flexibility in operation and rugged performance to win against high workload, tight deadlines, multiple tasks and complexity of testing. It yields high quality results for virtually any biochemistry test to deliver quick, efficient and consistent performance. Automated, Discrete, Patient prioritized, Floor model Based on proven technology, Diffraction Grating Separate probes for Reagent R1 & R2 and dedicated probe for sample Low reading volume of 200 µl only Onboard cooling for reagents to enhance the reagent stability Barcode for reagents & samples (Optional) Wide test menu

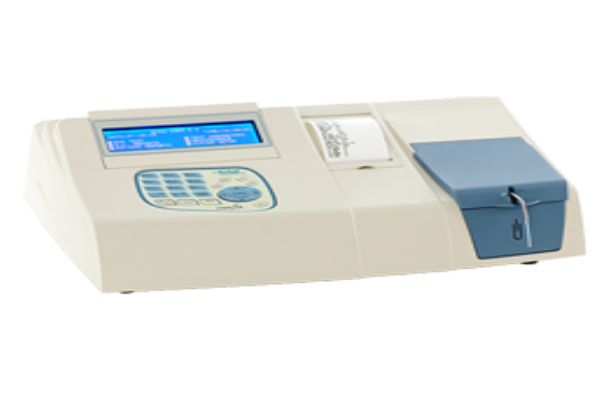

Erba Chem 5X
• Semi-automated analyzer • Multi-point calibration with graphical display • Repeat measurement with read key • USB connectivity to external printer and PC • Monochromatic & bichromatic measurement • Built- in self diagnosis with help key facility • Dual cuvette system and inbuilt thermal printer

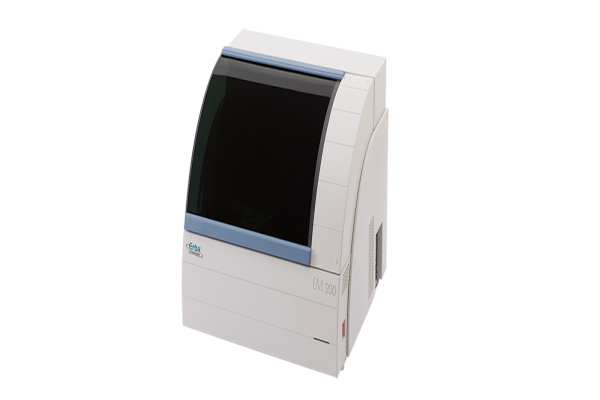

EM 200
• Compact bench top analyzer having a small foot print • Fully automated, random access clinical chemistry analyzer • Default programmed parameters • Permanent hard glass curettes reduces operational cost and minimizes downtime • Advanced on board 8 stages laundry prevents carryover and contamination from sample to sample & reagent to reagent • Auto dilution and rerun feature saves time and avoids manual handling of samples • Flexibility for introducing STAT samples at any point of time • Real time monitoring of reaction curves • Unlimited data storage capacity • Windows XP based user friendly software • Multiple calculation modes such as linear, non-linear & multipoint
