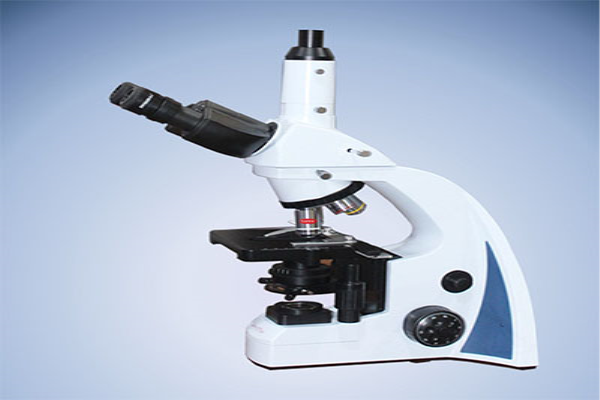

LM 12 1706
Sharp image display with excellent optical function Small space occupancy with integral stand design Low environment requirements with anti-mold technology. Cord wrap and rest on the back Rack-less stage with no side protrusions Comfortable operation with Low position coarse and Fine adjustment Knobs. Viewing Head : Binocular/ Trinocular head inclined at 30° with 360° rotatable. Eyepiece : WF10X/18mm. Objectives : Infinitive Achromatic Objectives 4x /0.1 WD 17.3mm 10x / 0.25 WD 10.0mm 40x / 0.60 WD 2.90mm Nose piece : Quadruple nosepiece Stage : Double layer Mechanical stage 150 X 140mm moving range 75mm X 55mm Focusing : Co axial coarse and fine adjustment. Illumination : Koehler Illumination, EPI illuminator, with Iris aperture diaphragm Filters : Blue , Green, Yellow, Ground glass.

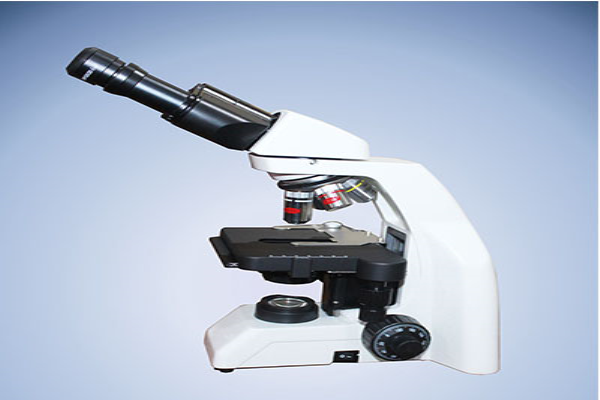

LM521803
Excellent Image quality with infinity optical system Better illumination with Sliding-in centerable condenser, convenient replacement with phase contrast and dark field condenser Handle for easy carrying Lamp replacement by direct removing housing
LB-200
Built-in transmitted illumination System LED Frame should have end opening, Stage Focusing Lock Stage height movement coarse and fine Focusing on both sides of frame Fixed quadruple nosepiece Abbe type with aperture iris diaphragm NA:1.25 Finite Semi-Plan Achromatic objectives(anti-fungus) Extra Wide Field Eyepiece EW10x/18 with Diopter Adjustment as Optional Comfortable Observation with Eyepoint and Interpupillary Adjustable

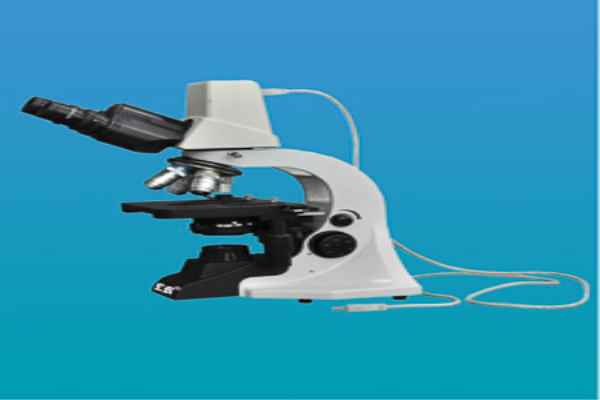

LB-205 Binocular Digital Microscope
Built-in 3.2 Mega Pixel CMOS camera, vivid images and real color reproduction. High definition images and videos, high frame rate. Professional image analyze software supports Windows Vista / Win 7 / Win8 / Mac Operation Systems. The software can preview, take photos and video, do image processing and measurement. Support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish and etc.). Compact and flexible, ideally suited for desktop, laboratory worktable. Viewing Head Seidentopf Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm Camera System Resolution 2048×1536 (3.2Mega Pixel) Output Mode USB2.0 Operation System Window 2000/ XP/ Vista/ Win 7/ Win8/ Mac Software ScopeImage 9.0 Frame Rate 9 fps @ 2048×1536 Eyepiece WF10×/ 18 P16×/ 12 Nosepiece Backward Quadruple Nosepiece Objective Achromatic Objective 4×, 10×, 40×, 100× Stage Double Layers Mechanical Stage 132×142mm/ 75×40mm Condenser Abbe NA1.25 with Iris Diaphragm & Fliter Focusing Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm Illumination 3W LED illumination, Brightness Adjustable Halogen Lamp 6V/ 20W, Brightness Adjustable (optional) Kohler illumination (optional) Optional accessories Phase Contrast Kit (optional) Dark-Field Attachment (optional) Polarization Attachment (optional) Rechargeable battery (optional)

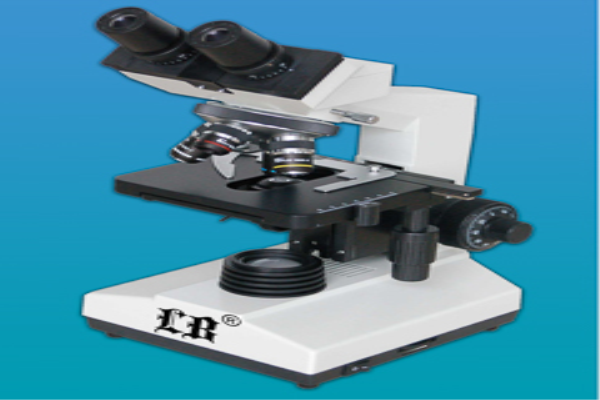

Microscope
• 45º inclined with 360 degree rotatable binocular tube • Co-axial built in Mechanical stage with fine vernier graduation, designed with convenient coaxial adjustment for Jerk free smooth slide manipulation through 50 X 75 mm • Dust proof quadruple/quintuple ball bearing revolving nose piece with positive click stops • Co-axial coarse & fine focusing adjustment knobs. Fine motion, graduated to .002 mm • Sub stage Abbe type N.A. 1.25 condenser with rack and pinion, continuously variable iris diaphragm with built in swing out filter holder • Steeple Grey, chemical resistant, back-on finish • Exclusive preset focus lock prevents damage to valuable slides and objectives • Heavy rectangular sturdy base, with built-in illumination 6 V - 20 W halogen lamp • With dust cover packed in Styrofoam packing • Mechanical Tube Length 160 mm
